Instruments

Instruments and accessories in the BioNMR facility are used for liquid NMR experiments to analyze biomolecules at the atomic resolutions including characterization of small molecules, structural and dynamic studies of proteins, drug and receptor interactions amongst others.

Sensitivity of NMR

       Typical sample volumes: 300 to 600 microliters
       Small molecule concentrations:  >1mM
       Protein concentrations: 25 to 1000 micromolar
       Wide range of buffers and salts can be used
       Non-destructive: Sample is returned
       Temperature range: -10 to 60oC

Our Spectrometers

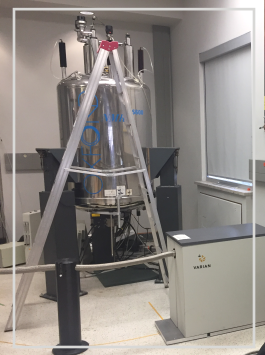

   CFI Varian INOVA 600 MHz Spectrometer

4 complete channels plus deuterium decoupling accessory
XYZ axial gradients
Variable temperature control
Varian 13C-enhanced HCN cold probe offering up to 4x 1H
and 2x 13C sensitivity
VnmrJ 4.2D software for data acquisition












        ORDCF Varian INOVA 600 MHz Spectrometer

         4 complete channels plus deuterium decoupling accessory
         XYZ axial gradients
         Variable temperature control
         Varian 5-mm 1H{13C/15N} triple resonance XYZ-PFG probe
         Varian 8-mm 1H{13C/15N} triple resonance Z-PFG probe
         VnmrJ 4.2 Software for data acquisition













BOOK NMR TIME

 The spectrometers are located in Room 309 of the Medical Sciences Building
