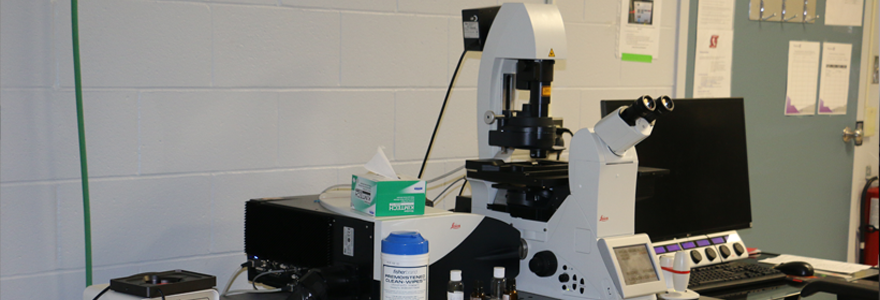

Leica SP8 Confocal Microscope
The Leica TCS SP8 Confocal Microscope is an ultra-sensitive and highly versatile imaging platform with the flexibility to accommodate a variety of specimens and fluorescence applications.
Leica HyD for Confocal Imaging
Key Features
- Point scanning confocal microscope
- Excitation lasers include: 405, 488, 552 and 638 nm.
- Spectral detection with 4 separate detectors, including 2 PMTs + 2 HyDs.
- HyDs are ultra-sensitive detectors with extremely high Photon Detection Efficiency (PDE) and photon counting capabilities.
- Detection is entirely filter-free and tunable with 1 nm specificity.
- Transmitted light detector for brightfield and DIC imaging.
- Large field of view, maximal pixel format of 8192 x 8192, 7 fps for 512 x 512 image.
- Multi-dimensional acquisitions including time series, z stacks, lambda scans.
- Motorized stage & LAS X Navigator module for fast previews and multi-position acquisitions.
- Additional imaging techniques available including ROI scanning for photomanipulation, FRAP, FRET and advanced spectral unmixing
